1.Introduction of Windows 10.1 Inch Rugged Tablet PC
This Windows 10.1 inch rugged tablet pc is in good performance with detachable pogo pin wireless keyboard, stylus optional. IPS Screen ensures wide viewing angles. Low-power consumption Intel CPU processor with big battery 6000mAh, which supports 5~7-hour long duration mix use.
1.CPU: Intel Atom X5-Z8350 Quad-core Turbo 4g 1.8GHz;
2.Operation System: Original Windows 10 Home OS
3.Display & Touch Screen: 10inch Capacitive Multi-touch IPS screen,1280*800 Pixels;420cd/m2,normal sunlight readable; If super-bright sunlight readable,adding AR FILM is optional.
4.Two Cameras: Front 2.0M camera, Back 8.0M camera;
5.Memory & Storage: 2Gram DDR+ 32G EMMC; 4GB+32GB/4GB+64GB is option.
6.Wireless network: 802.11b/g/n/ac wireless (2.4G/5GDual-band wifi) and Bluetooth4.0;
7.Battery: Built-in 3.7V/9500mAh Lithium Battery
8.I/O Ports: 1*Micro USB,1*USB2.0 Host,1*micro HDMI Port,1*DC port,1*earphone jack,1*Sim Card Slot,1*TF card slot Support SDHC/SDXC;
9.Rugged Durability: Waterproof and dustproof rate:IP68 Three
-anti slim rugged tablet
10.OTG:support U disk, mouse, keyboard
11.GPS+GLONASS:Support
12.NFC: support
13.support G-sensor/Light sensor/Sensing distance ;barcode scanner:Honeywell optional
14.flashlight:support
15.ID card recognition by software:support
optional
16:Fingerprint: Domestic/FBI /commercial fingerprint optional
2.Parameter (Specification) of Windows 10.1 Inch Rugged Tablet PC
Project Info |
Description |
project name |
TPS10 |
Market positioning |
IP68 Three -anti slim rugged tablet |
General Info |
Description |
size |
285*173*14mm |
weight |
~900g |
Hardware Info |
Description |
chip |
Intel Atom X5-Z8350 4G Quad-core 1.84GHZ |
frequency |
GSM:900+1800 WCDMA:900+2100;(UL:5.76Mbps,DL:21Mbps) GSM:850+1900 WCDMA:850+1900; Optional 4G-LTE: band 1,3,7,20 or band 2,4,5,7,17 |
GPRS/WAP/MMS |
support |
EDGE |
support |
HSPA |
support |
Memory |
|
RAM+ROM |
2G+32G 4GB+32GB/4GB+64GB |
Data communication |
|
Bluetooth |
BT4.0 |
Wifi |
802.11b/g/n support 2.4/5.0 GHz,dual band WIF |
NFC |
support |
FM |
support |
USB data transfer |
V2.0 |
ID card recognition by software |
support optional |
Fingerprint |
Domestic/FBI /commercial fingerprint optional |
Face recgonition |
support optional |
storage card |
Support Micro-SD card (Max 128G) |
OTG |
support U disk, mouse, keyboard |
Sensor |
|
G-sensor |
support |
Light sensor |
support |
Sensing distance |
support |
other |
|
barcode scanner |
Honeywell optional |
Pogo pin |
1 group |
GPS+GLONASS |
support |
Independent headphones on |
support,3.5mm |
flashlight |
support |
speaker |
8Ω / 2.5W fidelity speakers * 1 |
Keyboard |
support Bluetooth 6 pin optional |
Stylus |
support optional |
Display |
|
screen |
10.1‘‘ TFT IPS HD(800*1280)/FHD (1200*1920) |
touch screen |
Support (5 point touch) |
Camera |
|
camera |
2+8MP 5+8MP/ 5+13MP AF Optional |
Battery |
|
capacity |
9500mAh Internal |
Platform |
|
operating system |
Windows 10 |
Language |
|
Built-in language |
multi-lingual |
other |
|
Key features screenshots |
support |
Multimedia |
|
Media Players (Mp3) |
support |
recording |
support |
MP3 audio format support |
MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
video |
Mpeg1, Mpeg2, Mpeg4 SP/ASP GMC, XVID, H.263, H.264 BP/MP/HP, WMV7/8, WMV9/VC1 BP/MP/AP, VP6/8, AVS, JPEG/MJPEG |
Accessories |
|
OTG line |
1 |
Data cable |
1 |
charger |
1 |
Certification |
|
CE/ROHS |
TBD |
FCC(HAC) |
TBD |
CTA |
TBD |
3.Feature And Application of Windows 10.1 Inch Rugged Tablet PC
This Windows 10.1 inch rugged tablet pc is made with ultra slim 10mm metal case, and HD 1280*800 IPS screen brings us fully immersive visual experience. Besides, the multi touch makes your every touch accurate and smooth. A extremely ideal tablets for home office and education.

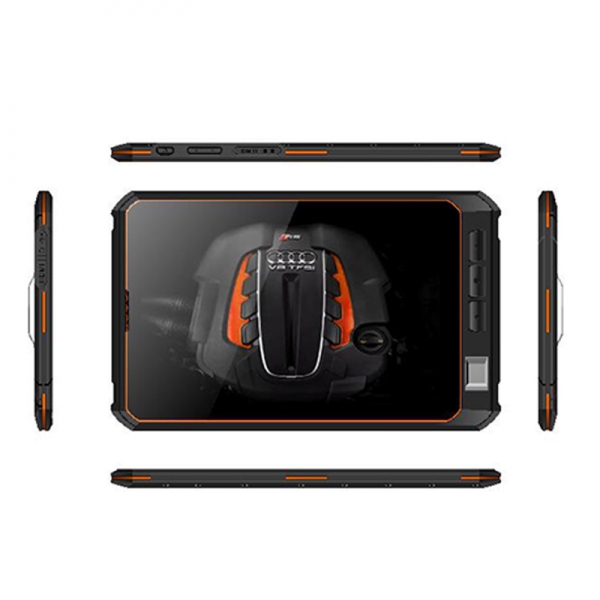

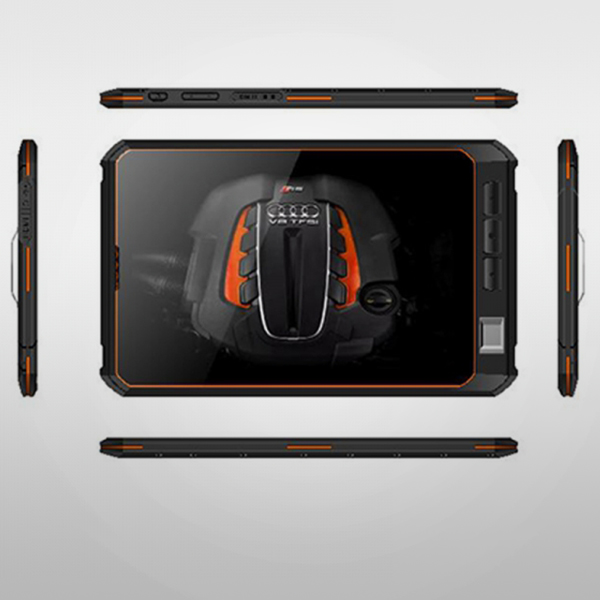

4.Details of Windows 10.1 Inch Rugged Tablet PC
Windows 10.1inch rugged tablet pc
5.Product Qualification
6.Deliver,Shipping And Serving
7.FAQ
Q: Are you a factory? What products do you supply with?
A: Yes, we are factory of consumer electronics products for more than 10 years. We produce and provide different range of product on laptop, and tablet pc.
Q: Can you print customers’logo on the products? And supply customized package ?
A: Yes, welcome OEM/ODM orders. Our MOQ is 1,000 pcs. We can add your logo on the products include samples order for free. We supply customized services.
Q: How long will you feedback our inquiries?
A: We supply 24 hours service. Please feel free contact us at any time. Your inquiry will be responded within 5 hours. If urgent, please contact us via mobiles, email, Skype , Wechat, etc.Business working days: from Sunday to Saturday
Q.Can I order a sample to check the quality?
A. Yes! Welcome order a sample to check the quality and functions before bulk order.Sample fees will be refunded in your next bulk order.
